Sun Hydraulics sandwich housings without a cartridge – the body the cartridge valve is fitted into. The housings are sold separately, for example when you want to fit your own cartridge, replace a housing in an existing stack or build a function that is not available as a complete manifold. Each housing has a cavity (T-11A, T-13A …) and a stack height, and fits a given CETOP/ISO size (NG 6, NG 10 …). Every product page has the Sun drawing with port layout and the housing symbol, plus a STEP file for CAD.If you prefer the housing with the valve fitted – see the other sandwich manifold categories. The same housing is used in several complete manifolds, and those are linked from the housing page.
No thumbnail available for this category.

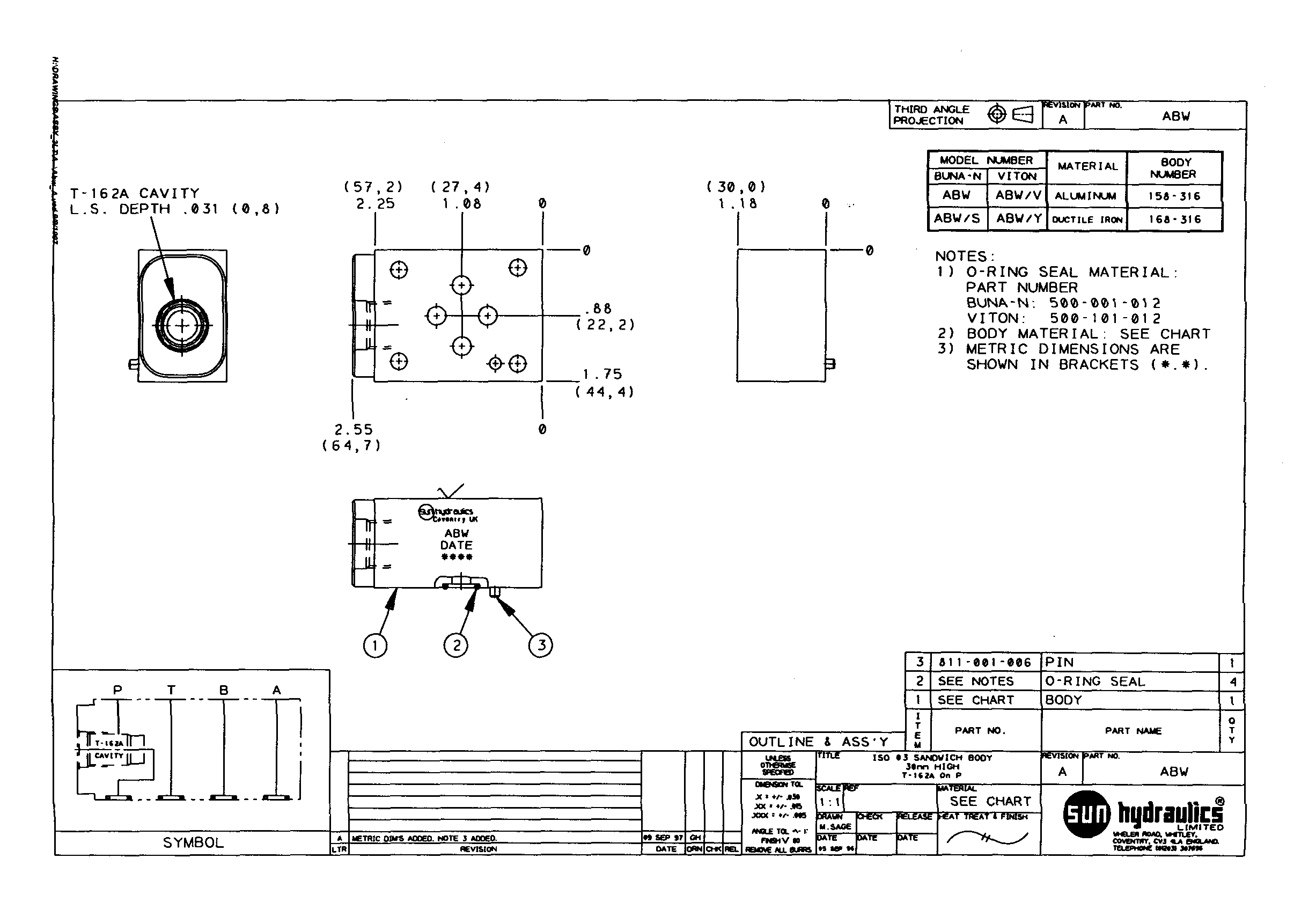

Sandwich housing without valve, cavity T-162A, stack height 30,0 mm, NG6. ISO 03 SANDWICH BODY 30mm HIGH T-162A On A & B (Meter-In).
Sandwich housing without valve, cavity T-162A, stack height 30,0 mm, NG6. ISO 03 SANDWICH BODY 30mm HIGH T-162A On A & B (Meter-Out).
Sandwich housing without valve, cavity T-162A, stack height 30,0 mm, NG6. ISO 03 SANDWICH BODY 30mm HIGH T-162A On P.

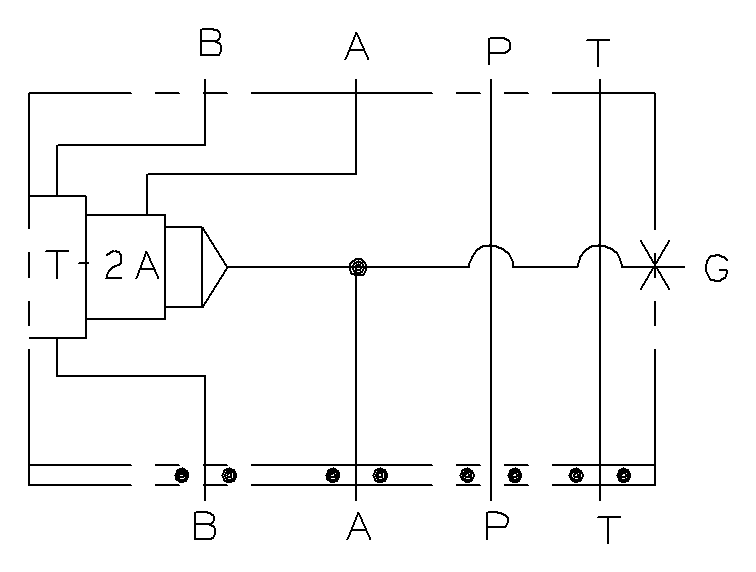

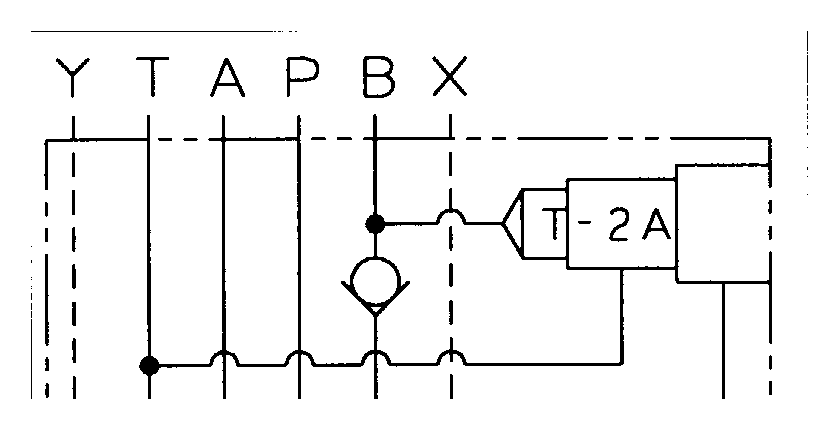

Sandwich housing without valve, cavity T-2A, stack height 75,9 mm, NG10. ISO 05 SANDWICH- CUSHION LOCK VALVE.
Sandwich housing without valve, cavity T-2A, stack height 49,3 mm, NG10. BODY- ISO 05 SANDWICH A PORT PILOTED FROM B PORT T-2A CAVITY.
Sandwich housing without valve, cavity T-2A, stack height 49,3 mm, NG10. BODY- ISO 05 INTERFACE B-PORT PILOTED FROM A-PORT.
Sandwich housing without valve, cavity T-2A, stack height 49,3 mm, NG10. 10 GPM NFPA SANDWICH WORK PORTS CROSS-PILOTED.
Sandwich housing without valve, cavity T-2A, stack height 75,9 mm, NG10 x&y. 02H SANDWICH- CUSHION LOCK VALVE.
Sandwich housing without valve, cavity T-2A, stack height 63,2 mm, NG10 x&y. BODY: ISO-05H SANDWICH T-2A CAVITY ON A, PILOT TO B.
Sandwich housing without valve, cavity T-2A, stack height 63,2 mm, NG10 x&y. BODY: ISO-05H SANDWICH T-2A CAVITY ON B, PILOT TO A.

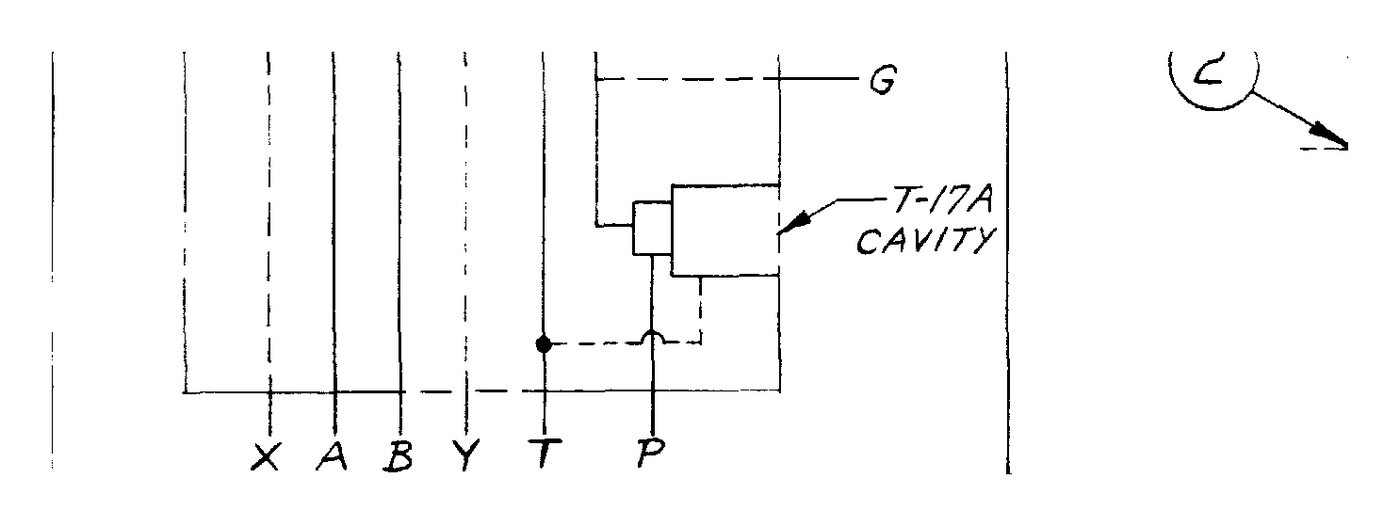

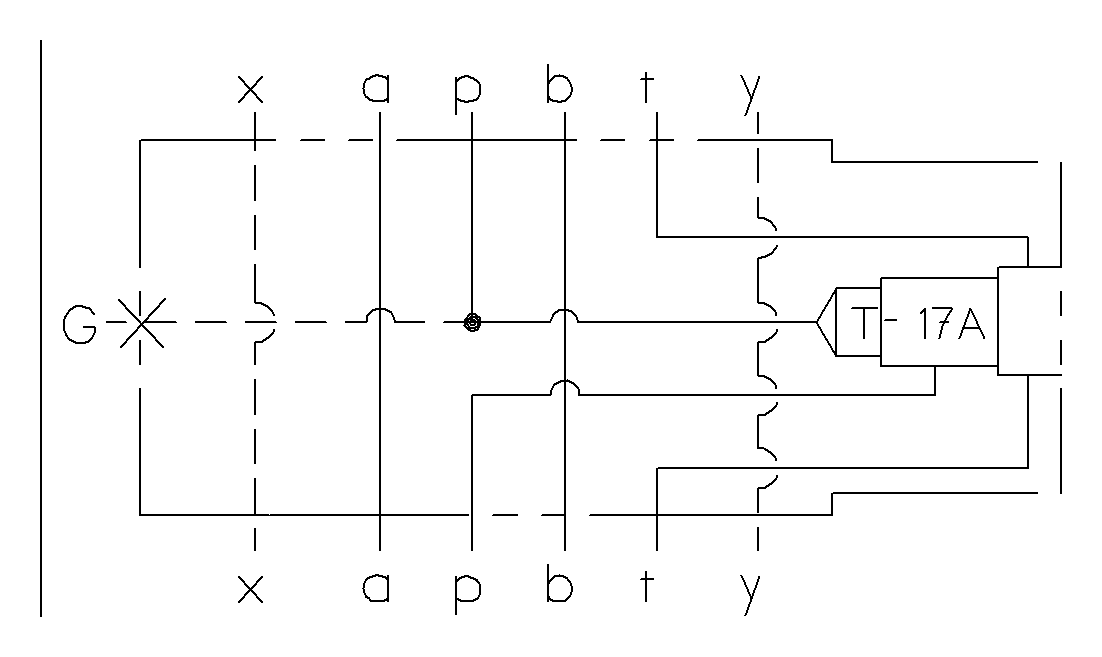

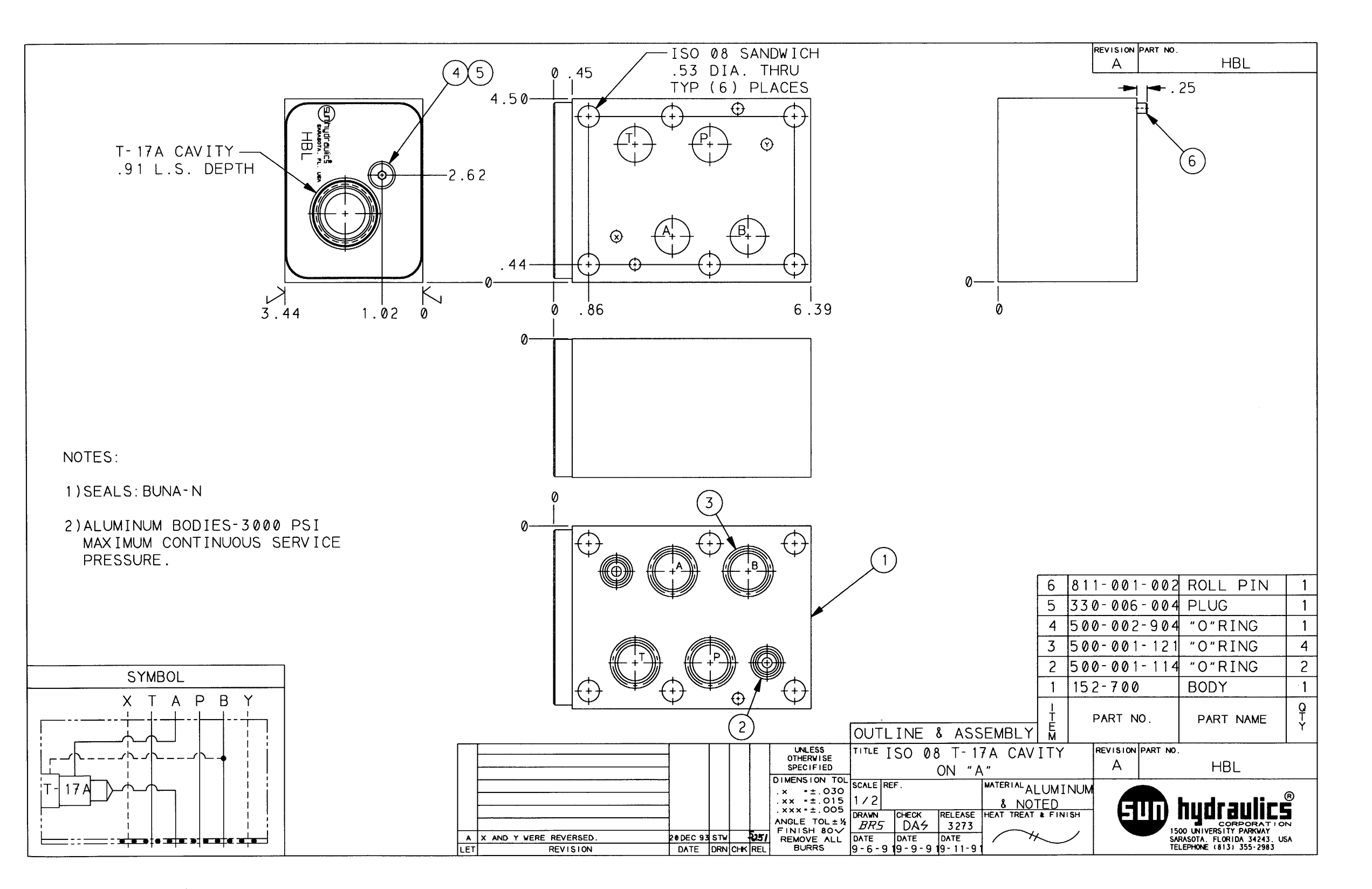

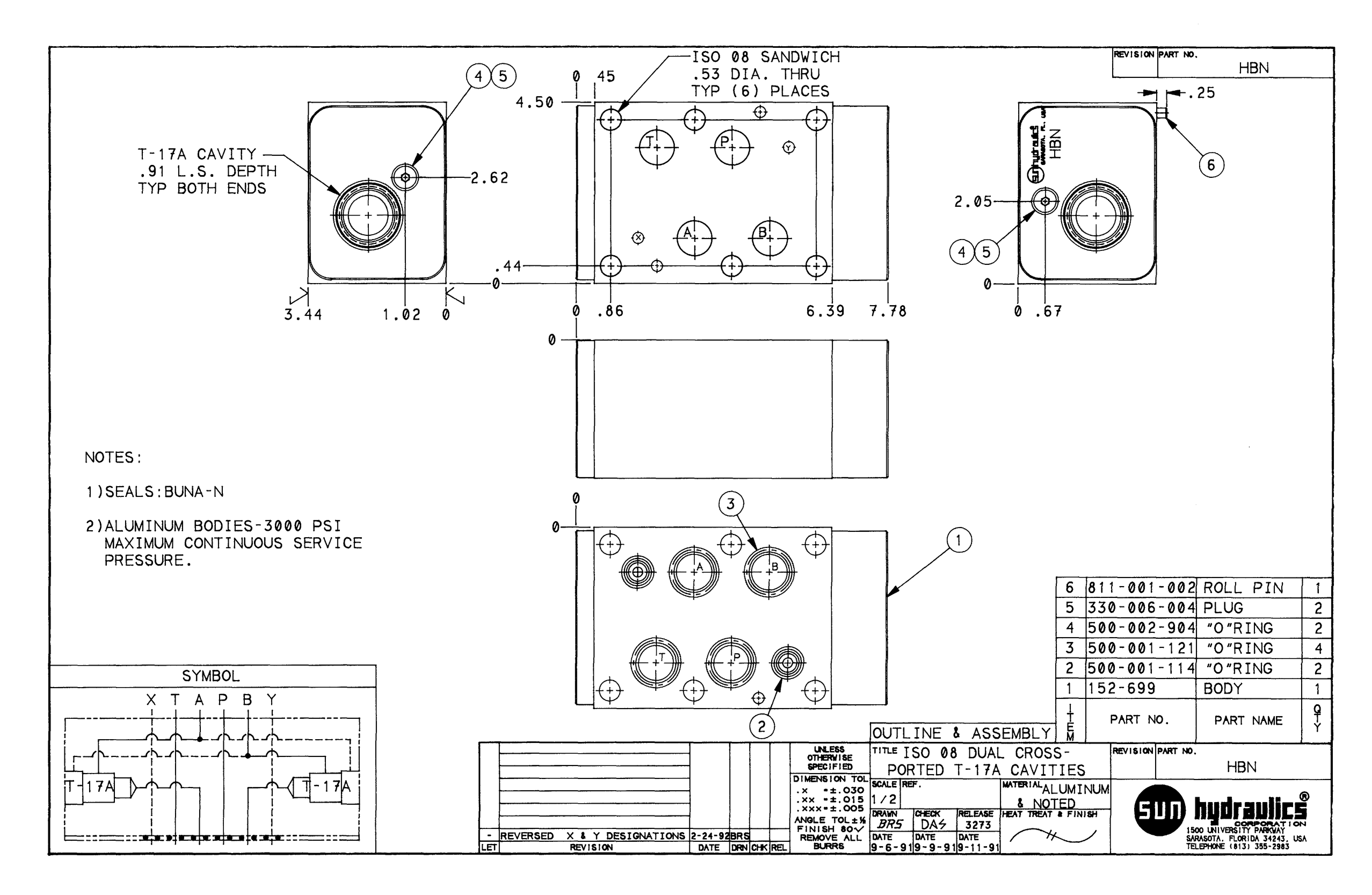

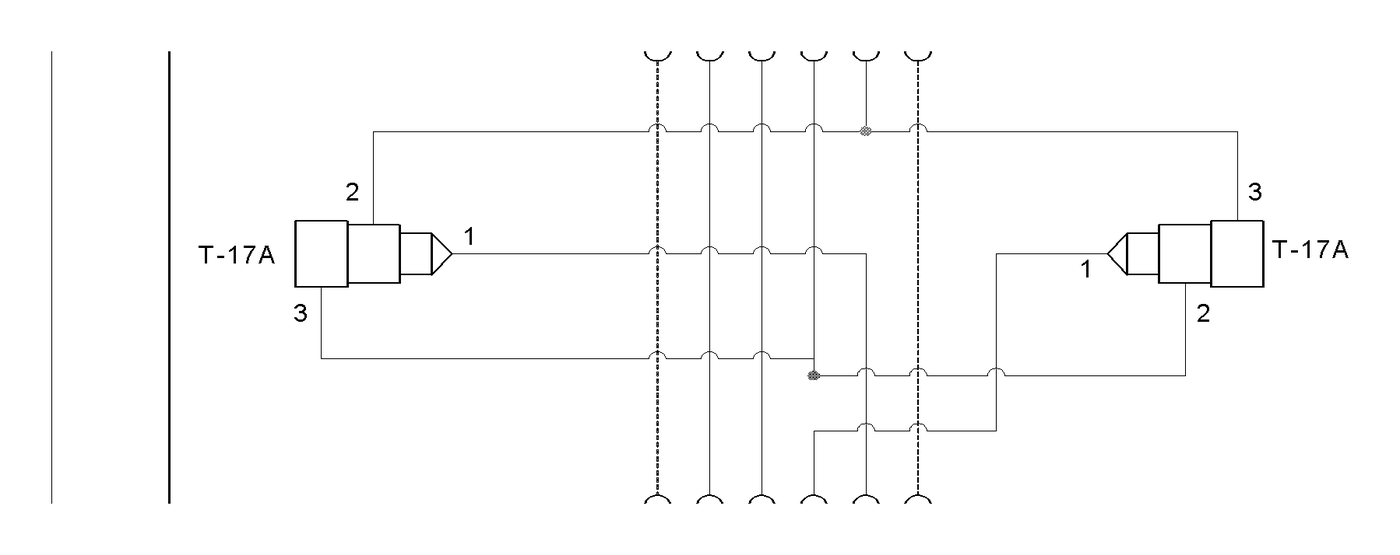

Sandwich housing without valve, cavity T-17A, stack height 75,9 mm, NG10 x&y. ISO-05 SANDWICH T-17A CAVITIES ON A & B CROSS PILOT.
Sandwich housing without valve, cavity T-17A, stack height 100,0 mm, NG10 x&y. ISO 05H U.S. & CETOP SANDWICH T-17A CAVITY, “P” PORT CONTROL, DRAIN TO “T”.
Sandwich housing without valve, cavity T-2A, stack height 63,2 mm, NG10 x&y. BODY: ISO2H-CETOP SANDWICH T-2A CAVITIES ON A & B CROSS PILOT.
Sandwich housing without valve, cavity T-17A, stack height 110,0 mm, NG16. ISO 07 SANDWICH- CUSHION LOCK VALVE.
Sandwich housing without valve, cavity T-17A, stack height 69,6 mm, NG16. D04 SANDWICH VALVE, P.O. CHECK ON “A”, PILOTED FROM “B”.
Sandwich housing without valve, cavity T-17A, stack height 69,6 mm, NG16. D07 SANDWICH VALVE, P.O. CHECK ON “B”, PILOT FROM “A”.

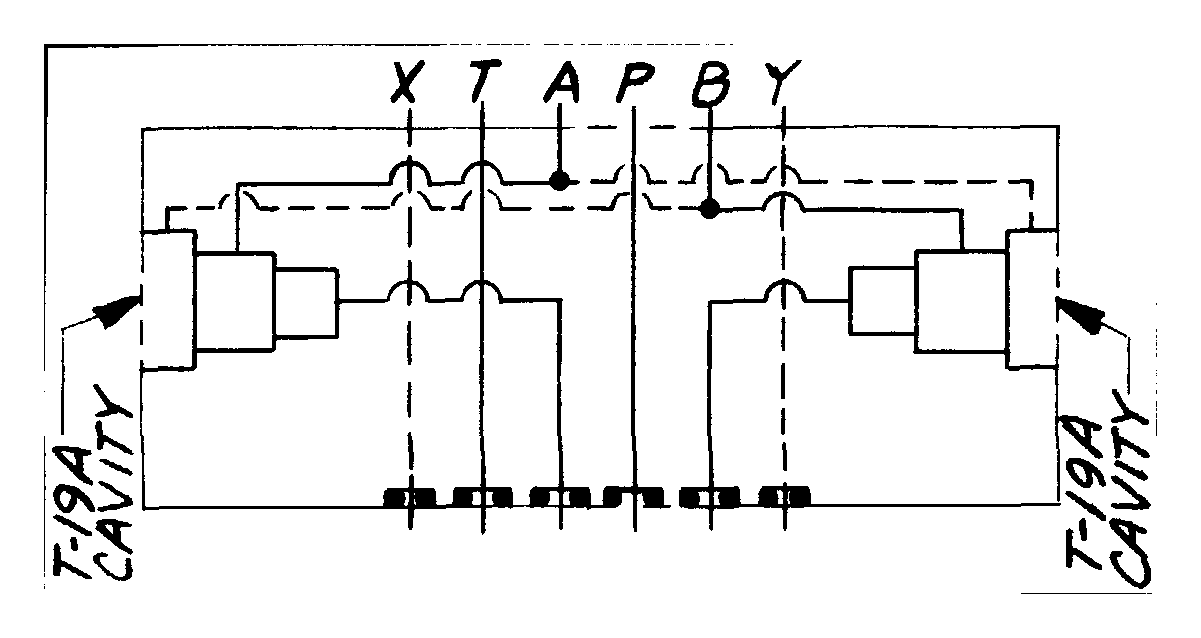

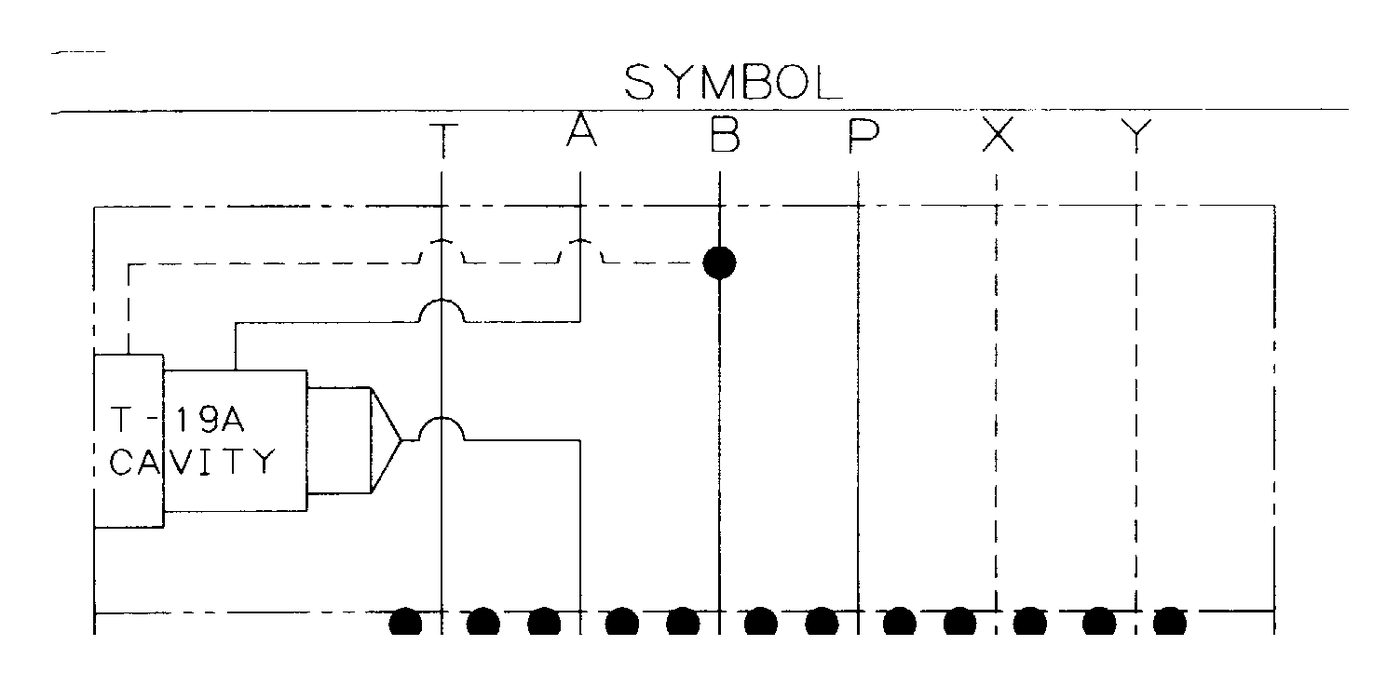

Sandwich housing without valve, cavity T-19A, stack height 89,4 mm, NG16. BODY – ISO 07 SANDWICH T-19A CAVITY, P.O. CHECK ON “A”, PILOTED FROM “B”.
Sandwich housing without valve, cavity T-19A, stack height 89,4 mm, NG16. BODY – ISO 07 SANDWICH P.O CHECK ON “B”, PILOT ON “A”.
Sandwich housing without valve, cavity T-19A, stack height 110,0 mm, NG16. ISO 07 SANDWICH- P.O. CHECK ON “A” & “B” CROSS-PILOTED.
Sandwich housing without valve, cavity T-17A, stack height 69,6 mm, NG16. ISO 07 SANDWICH VALVE P.O CHECK ON A & B, CROSS PILOT.
Sandwich housing without valve, cavity T-2A, stack height 49,3 mm, NG10. 10 GPM NFPA SUBPLATE FOR “P” PORT REDUCING VALVES BOTTOM PORTED.
Sandwich housing without valve, cavity T-2A, stack height 49,3 mm, NG10. 10 GPM NFPA SUBPLATE FOR “P” PORT REDUCING VALVES SIDE PORTED.
Sandwich housing without valve, cavity T-2A, stack height 49,3 mm, NG10. 10 GPM NFPA SUBPLATE FOR “P” PORT REDUCING VALVES SIDE PORTED-WITH MANIFOLD “T” PORT.

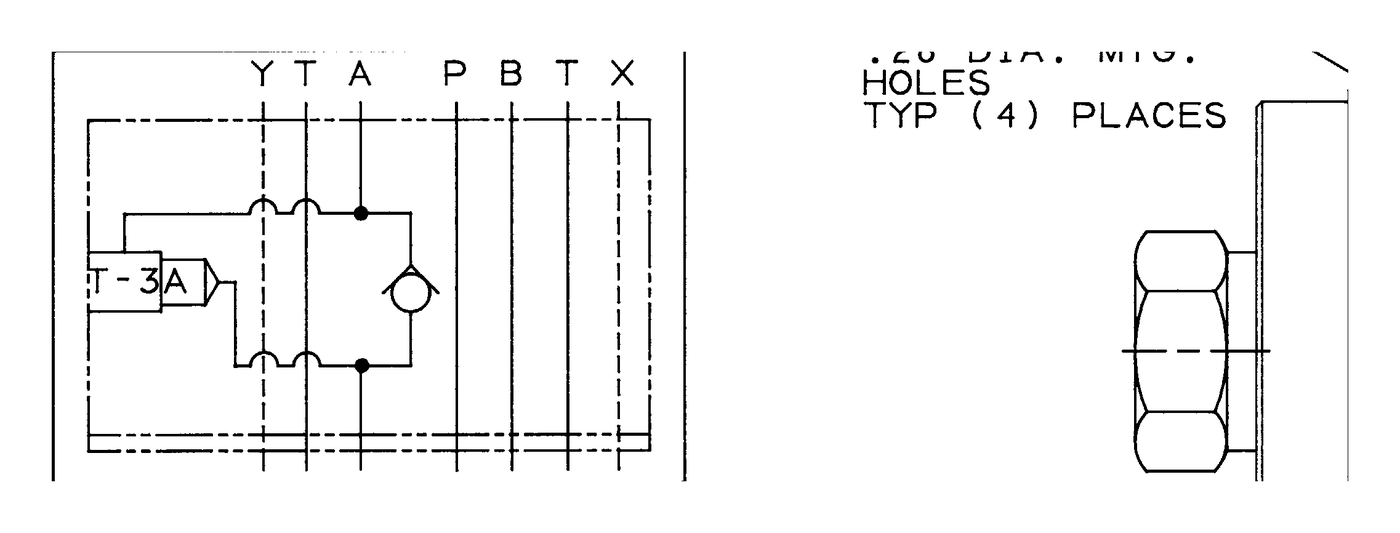

Sandwich housing without valve, cavity T-3A, stack height 63,2 mm, NG10. ISO 05 SANDWICH- OUT OF A W/REVERSE FREE FLOW CHECK.
Sandwich housing without valve, cavity T-3A, stack height 63,2 mm, NG10. ISO 05 SANDWICH- OUT OF B W/REVERSE FREE FLOW CHECK.

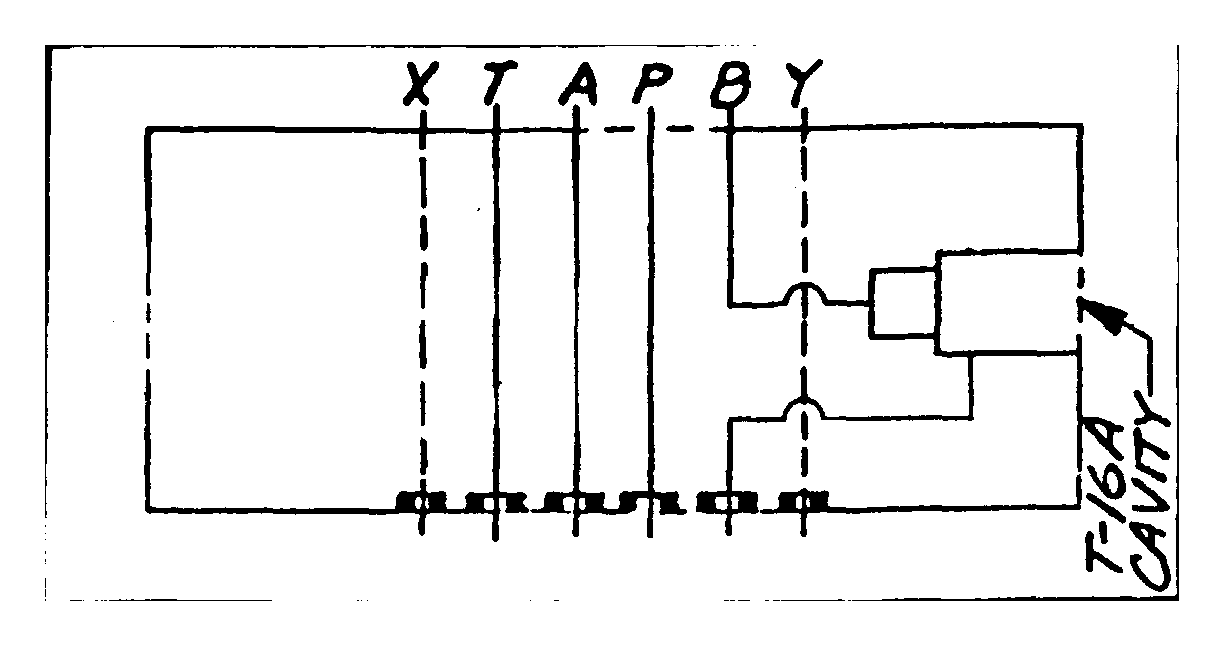

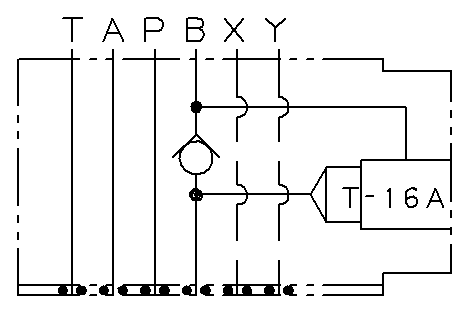

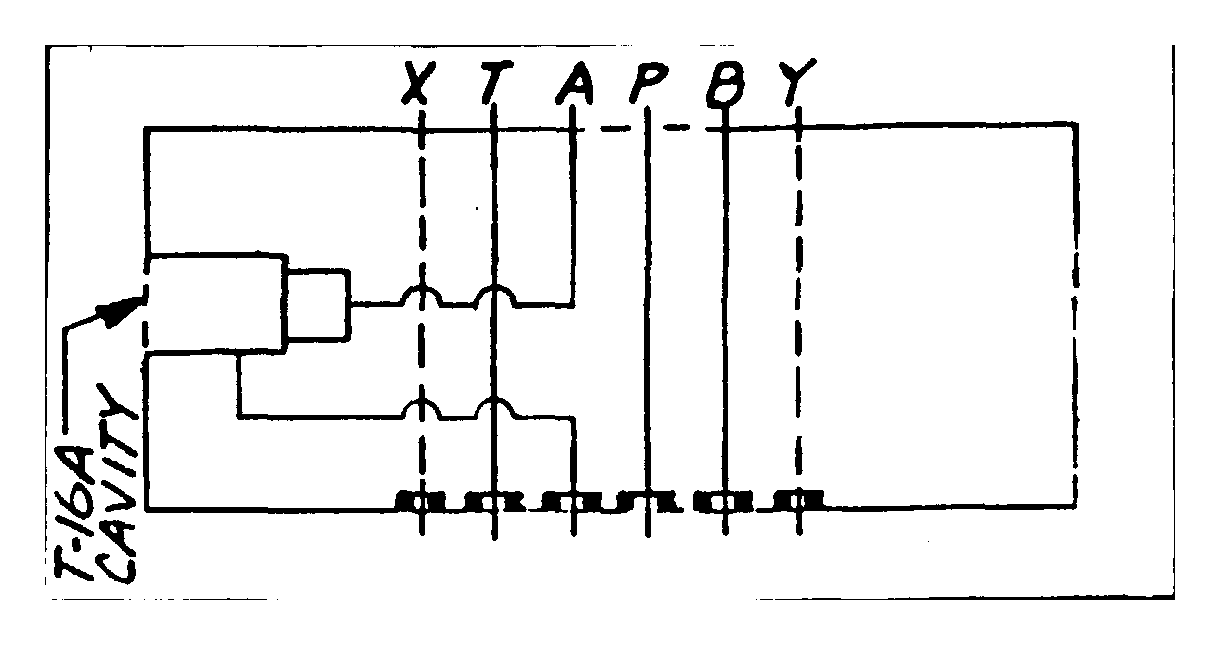

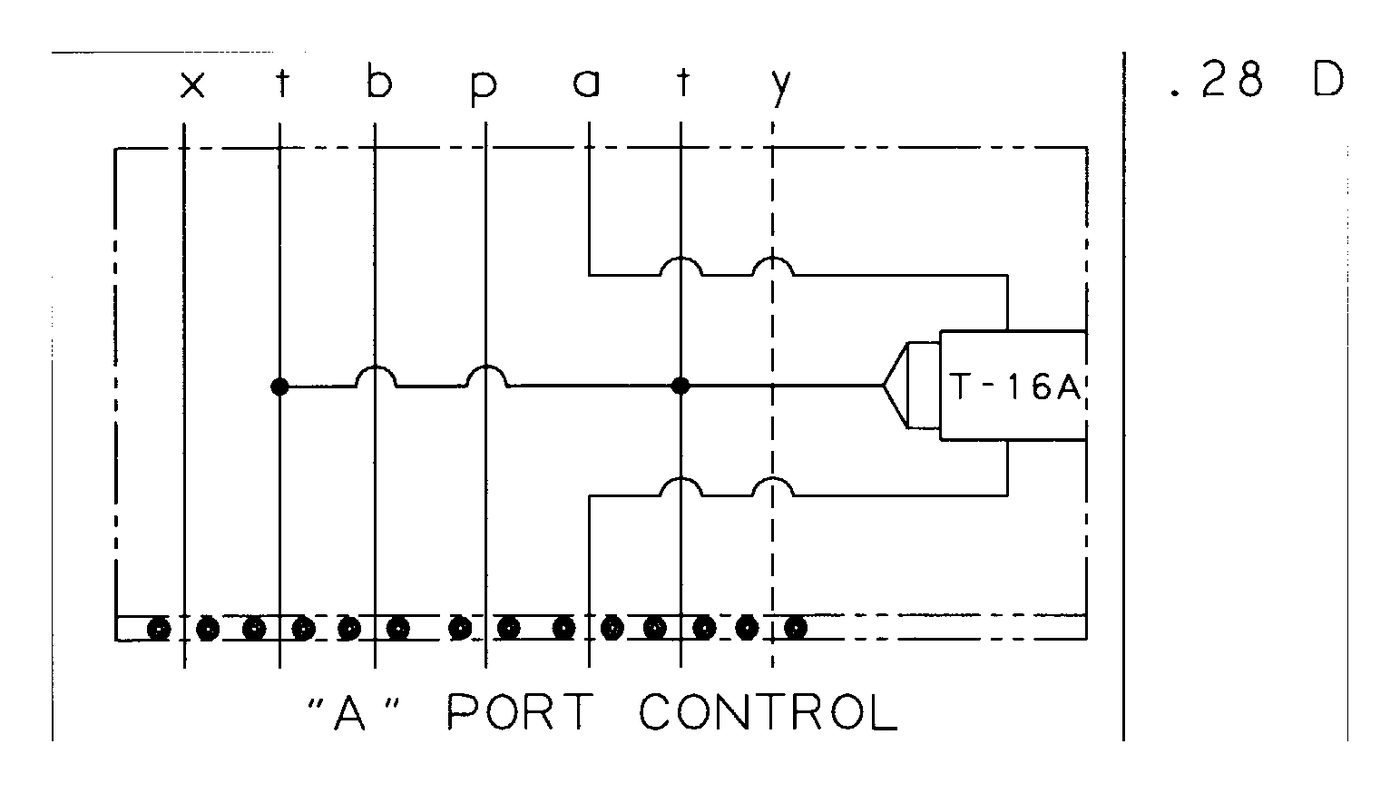

Sandwich housing without valve, cavity T-16A, stack height 89,4 mm, NG25. ISO 08 SANDWICH BODY-T-16A ON A W/REVERSE FREE FLOW CHECK.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. ISO 08 SANDWICH BODY T-16A A to T.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. ISO 08 SANDWICH BODY T-16A B to T.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. ISO 08 SANDWICH BODY T-16A P to T.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY- ISO 08 SANDWICH, ANTI-CAVITATION, T-16A CAV.

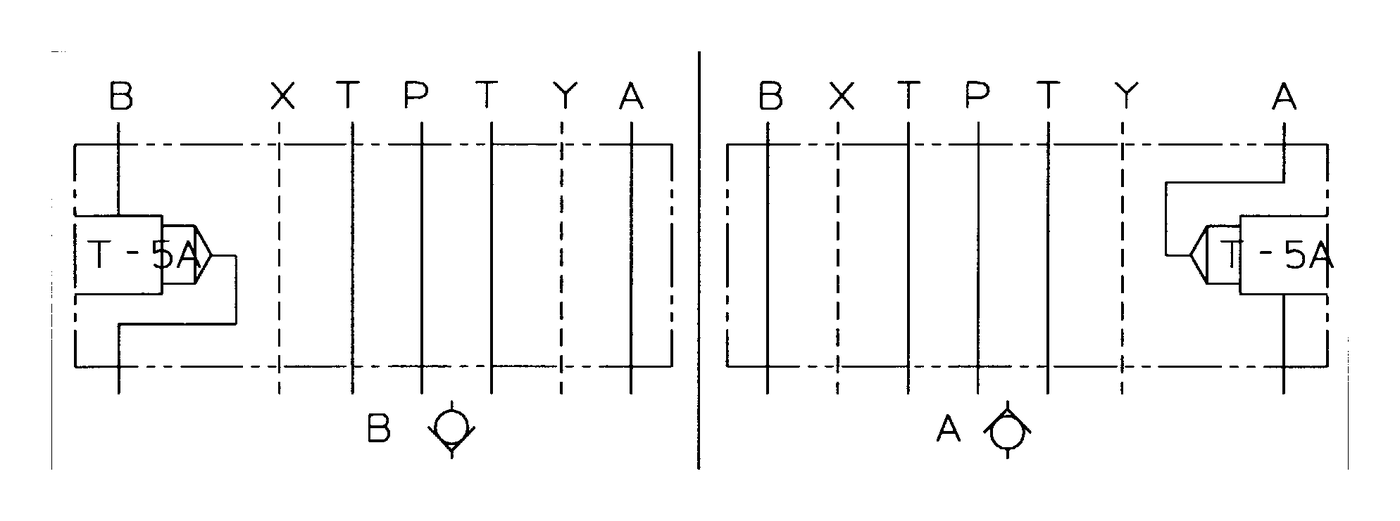

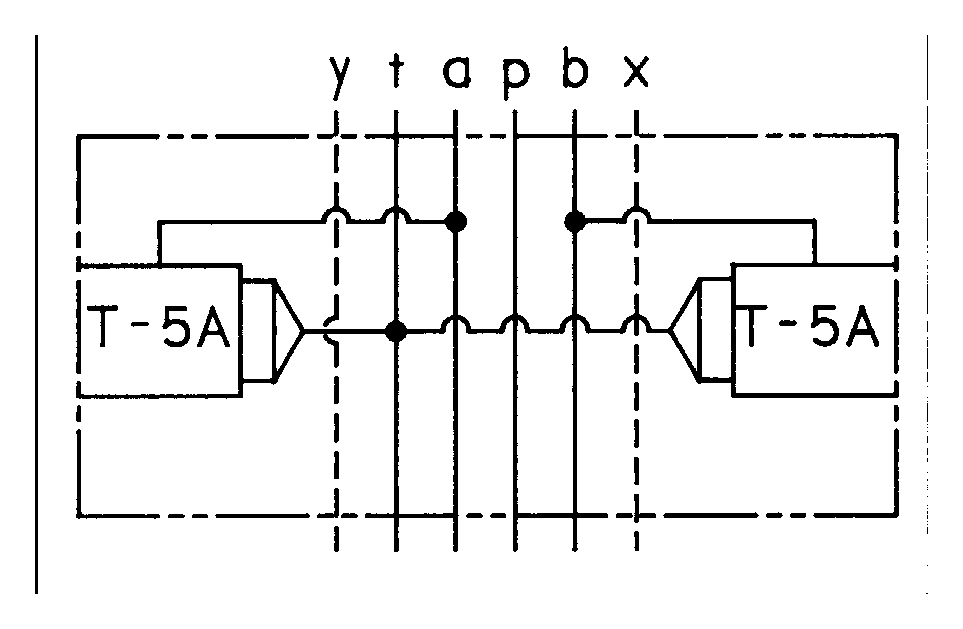

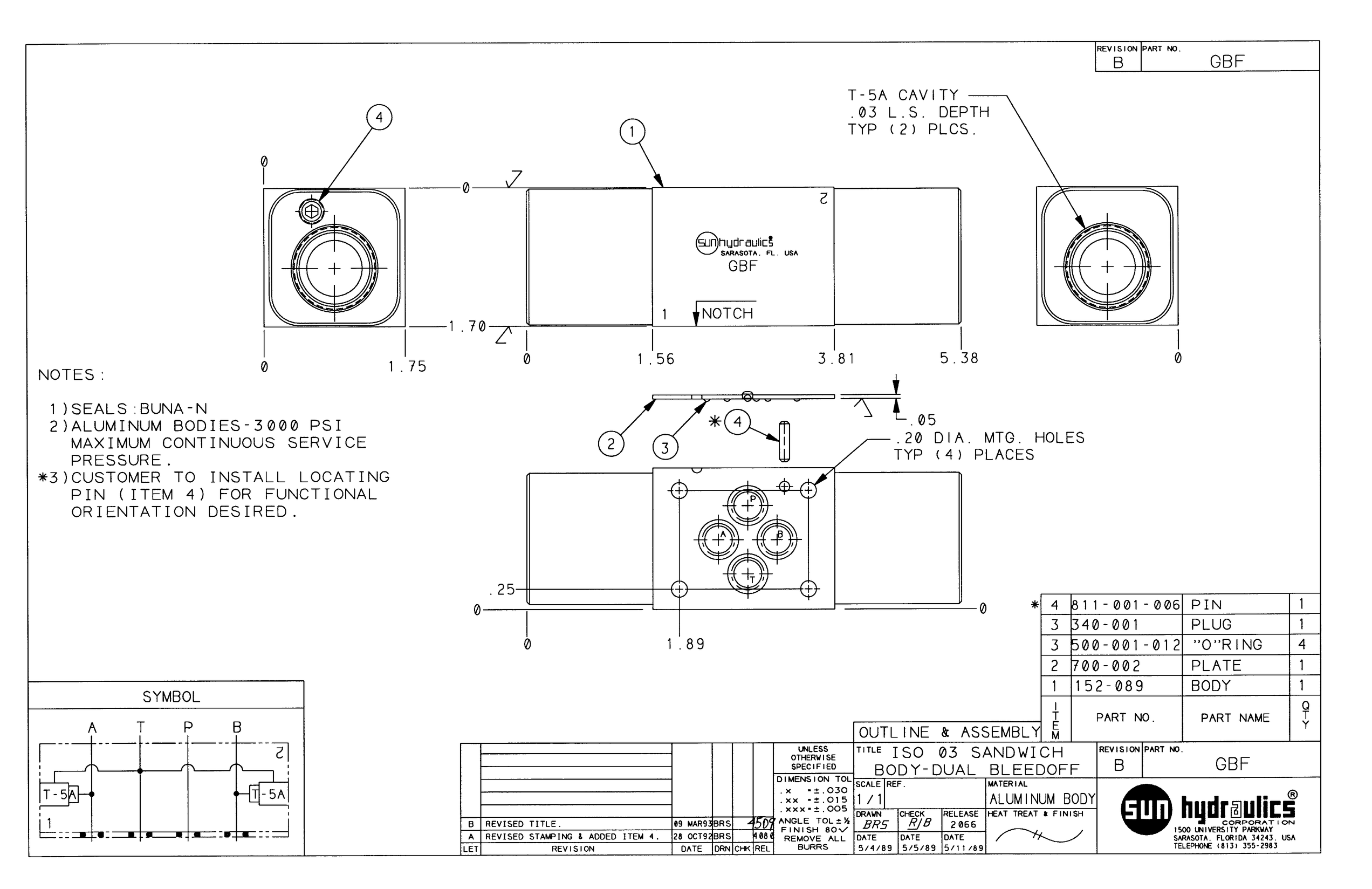

Sandwich housing without valve, cavity T-5A, stack height 49,3 mm, NG25. OUTLINE & ASSEMBLY NFPA D06 SANDWICH BODY.
Sandwich housing without valve, cavity T-3A, stack height 63,2 mm, NG10 x&y. 02H SANDWICH- W/REVERSE FF CHECK.
Sandwich housing without valve, cavity T-3A, stack height 63,2 mm, NG10 x&y. 02H SANDWICH- W/REVERSE FF CHECK.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG16. ISO 07 SANDWICH – T-16A ON A W/ REVERSE FREE FLOW CHECK.
Sandwich housing without valve, cavity T-16A, stack height 89,4 mm, NG16. ISO 07 SANDWICH-T-16A ON B W/REVERSE FREE FLOW CHK.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. ISO 07 SANDWICH (SEE SYMBOL) T-16A CAVITY, P TO T & GAGE PORT ON P.
Sandwich housing without valve, cavity T-3A, stack height 49,3 mm, NG10 x&y. ISO 05 SUBPLATE, BOTTOM PORTED RELIEF. T-3A CAVITY .50-14 BSPP PORTING.
Sandwich housing without valve, cavity T-3A, stack height 55,4 mm, NG25. ISO-08 REAR PORTED SUBPLATE.
Sandwich housing without valve, cavity T-3A, stack height 49,3 mm, NG10. 10 GPM NFPA SUBPLATE FOR RELIEF VALVE “P” TO “T” SIDE PORTED.
Sandwich housing without valve, cavity T-3A, stack height 49,3 mm, NG25. 30 GPM NFPA SUBPLATE FOR RELIEF VALVE- “P” TO “T” SIDE PORTED.
Sandwich housing without valve, cavity T-3A, stack height 49,3 mm, NG25. 30 GPM NFPA SUBPLATE FOR RELIEF VALVE- “P” TO “T” SIDE PORTED WITH MANIFOLD T&Y PORTS.
Sandwich housing without valve, cavity T-3A, stack height 50,8 mm, NG6. ISO 03 SUBPLATE FOR RELIEF VALVE- “P” TO “T”, SIDE-PORTED MANIFOLD “T” PORT, T-3A CAV.
Sandwich housing without valve, cavity T-3A, stack height 49,3 mm, NG10. 10 GPM NFPA SUBPLATE FOR RELIEF VALVE “P” TO “T” SIDE PORTED WITH MANIFOLD “T” PORT.

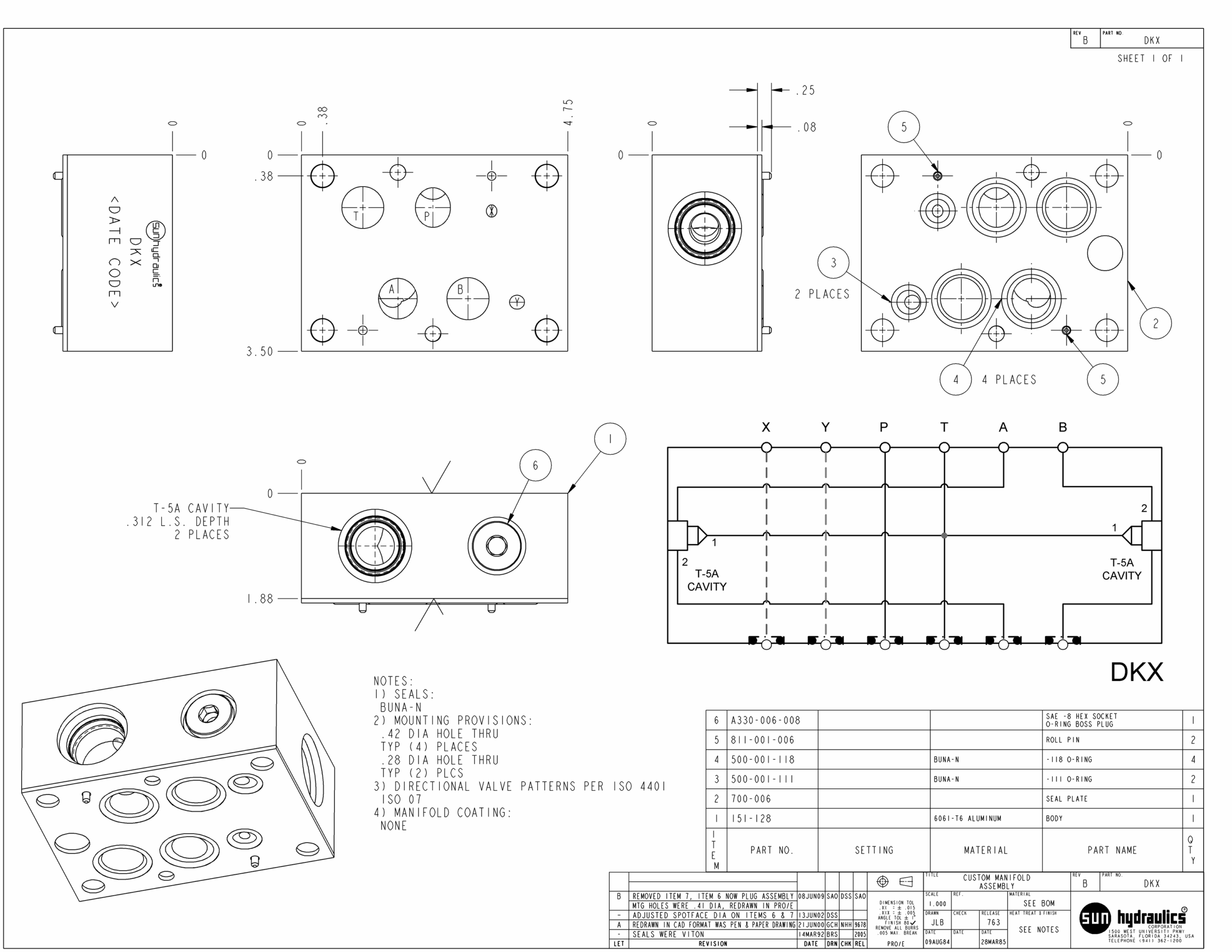

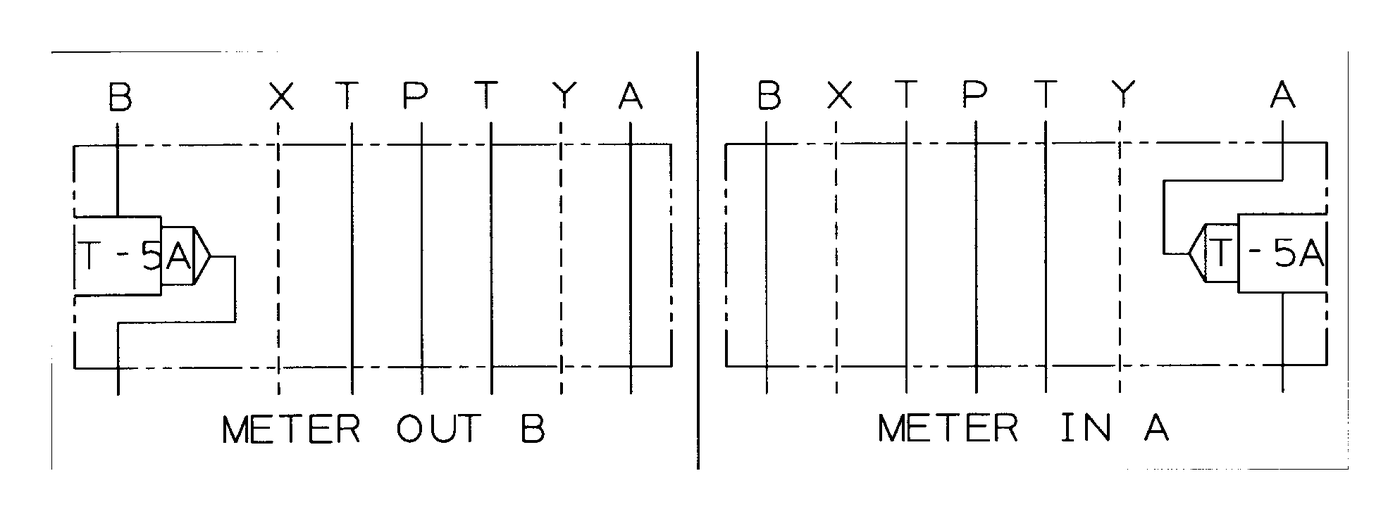

Sandwich housing without valve, cavity T-5A, stack height 50,5 mm, NG10. OUTLINE & ASSEMBLY 10 GPM NFPA SANDWICH FLOW CONTROL – T-5A CAVITY.
Sandwich housing without valve, cavity T-5A, stack height 50,5 mm, NG10. OUTLINE & ASSEMBLY 10 GPM NFPA SANDWICH- FLOW CONTROL – T-5A CAVITY.
Sandwich housing without valve, cavity T-5A, stack height 37,8 mm, NG10. BODY- D02 SANDWICH, A OR B TO T, T-5A CAVITY.
Sandwich housing without valve, cavity T-5A, stack height 50,5 mm, NG10. ISO 05 SANDWICH BODY CHECK VALVE-T-5A CAVITY.
Sandwich housing without valve, cavity T-5A, stack height 50,5 mm, NG10. ISO 05 SANDWICH BODY CHECK VALVE-T-5A CAVITY.
Sandwich housing without valve, cavity T-5A, stack height 50,5 mm, NG10. ISO 05 SANDWICH-DUAL CHECK VALVES, T-5A CAVITIES.

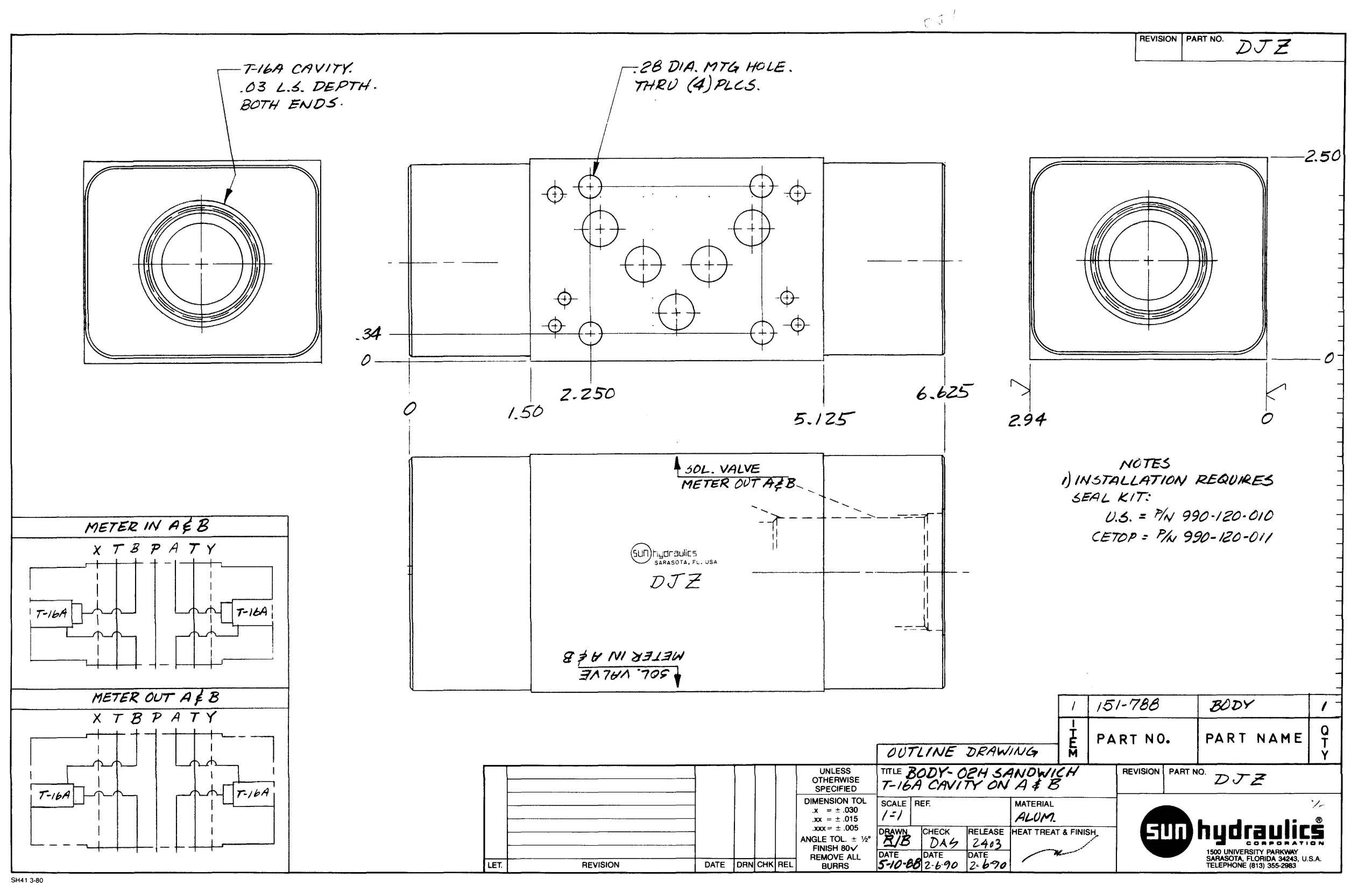

Sandwich housing without valve, cavity T-16A, stack height 75,9 mm, NG10. ISO 05 SANDWICH BODY-T-16A CAVITY T->A OR T->B.
Sandwich housing without valve, cavity T-5A, stack height 62,0 mm, NG10. BODY-METER IN P 10 GPM ISO 05 SANDWICH.
Sandwich housing without valve, cavity T-5A, stack height 49,3 mm, NG10. D02 SANDWICH BODY P TO T CONTROL T-5A CAVITY.
Sandwich housing without valve, cavity T-16A, stack height 75,9 mm, NG10. ISO 05 SANDWICH BODY-T-16A CAVITY T->A AND T->B.

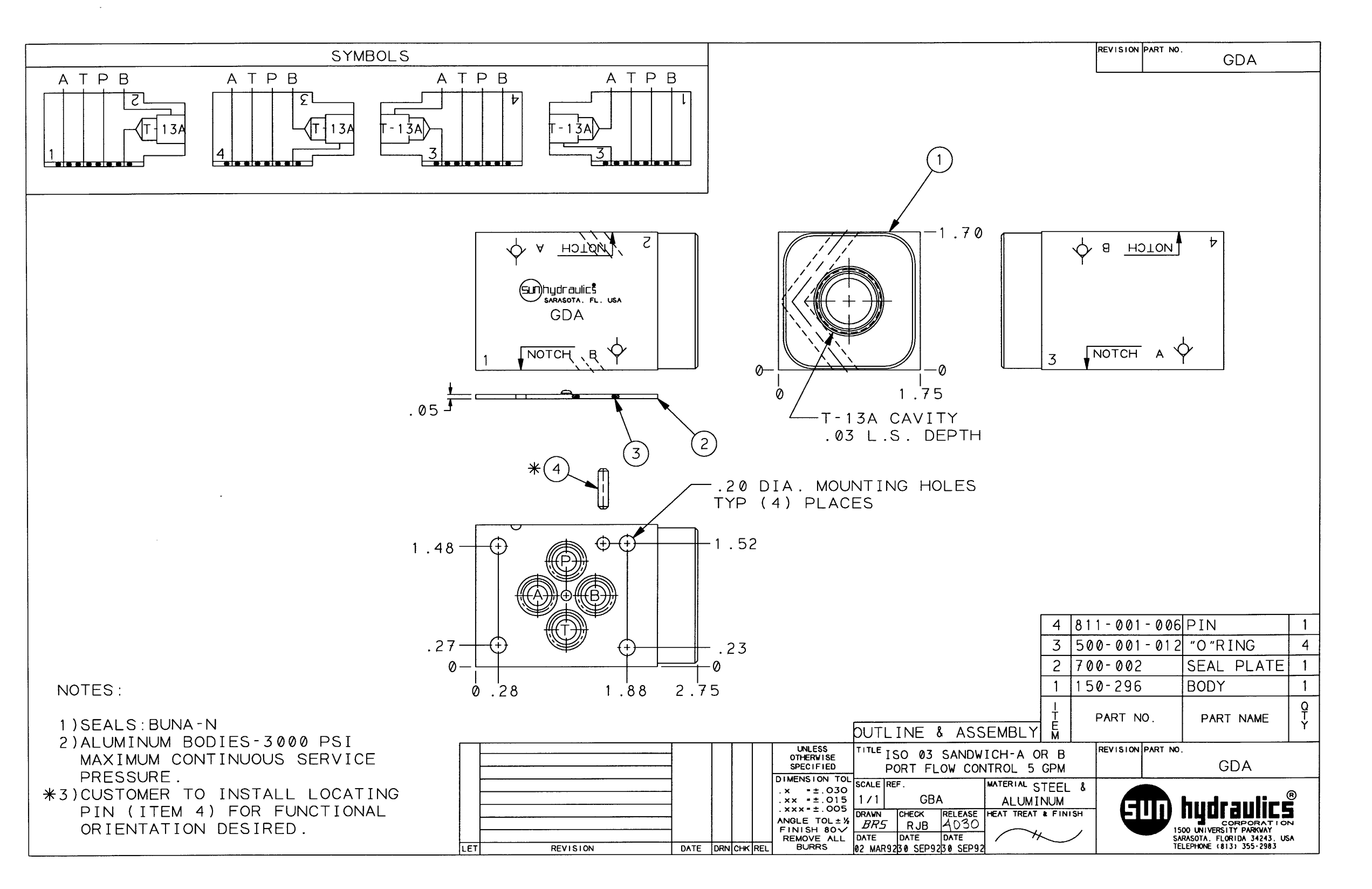

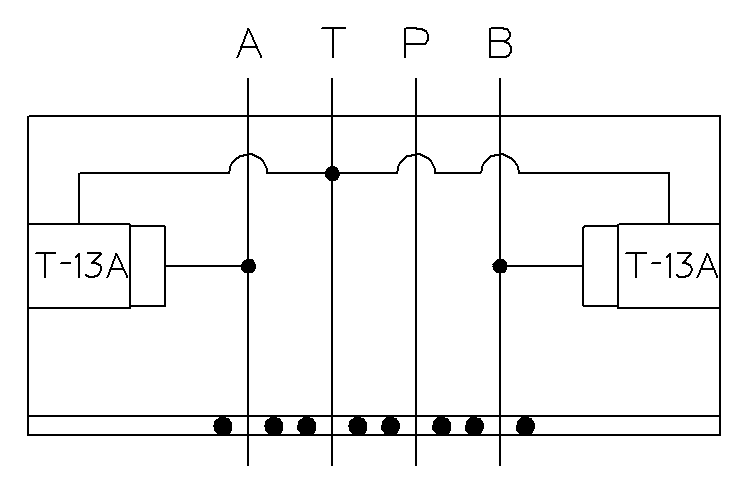

Sandwich housing without valve, cavity T-13A, stack height 31,5 mm, NG10. SANDWICH BODY – ISO-05 T-13A CAVITY A TO B.
Sandwich housing without valve, cavity T-5A, stack height 49,3 mm, NG10. BODY-D02 SANDWICH “T” PORT-CONTROL-T-5A CAVITY.
Sandwich housing without valve, cavity T-5A, stack height 62,0 mm, NG10. ISO 05 SANDWICH BODY-DUAL ANTI-CAV WORK PORTS TO TANK.
Sandwich housing without valve, cavity T-5A, stack height 36,6 mm, NG10. ISO 05 SANDWICH BODY DUAL T-5A CAVITY. A & B TO T.
Sandwich housing without valve, cavity T-5A, stack height 50,5 mm, NG10. ISO 05 SANDWICH-DUAL FLOW CONTROL, T-5A CAVITIES.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H CETOP SANDWICH T-5A CAVITY ON A OR B.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H CETOP SANDWICH T-5A CAVITY ON A OR B.
Sandwich housing without valve, cavity T-16A, stack height 63,2 mm, NG10 x&y. BODY- D02H SANDWICH T-16A CAVITY- METER IN “A”.
Sandwich housing without valve, cavity T-16A, stack height 63,2 mm, NG10 x&y. BODY- D02H SANDWICH T-16A CAVITY- METER OUT “A”.
Sandwich housing without valve, cavity T-16A, stack height 63,2 mm, NG10 x&y. BODY- D02H SANDWICH T-16A CAVITY- METER IN “B”.
Sandwich housing without valve, cavity T-16A, stack height 63,2 mm, NG10 x&y. BODY- D02H SANDWICH T-16A CAVITY- METER OUT “B”.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H CETOP SANDWICH T-5A CAVITY ON A OR B.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H CETOP SANDWICH T-5A CAVITY ON A OR B.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H CETOP SANDWICH T-5A CAVITY ON A & B.
Sandwich housing without valve, cavity T-16A, stack height 75,9 mm, NG10 x&y. “02H” SANDWICH BODY-T-16A CAVITY T->A OR T->B.
Sandwich housing without valve, cavity T-2A, stack height 63,2 mm, NG10 x&y. 02H SANDWICH-T-2A CAV. ON P BYPASS TO TANK.
Sandwich housing without valve, cavity T-16A, stack height 63,2 mm, NG10 x&y. BODY – D02 SANDWICH T-16A CAVITY – METER IN “P”.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. BODY: D02H-CETOP SANDWICH T-5A CAVITY ON P.
Sandwich housing without valve, cavity T-16A, stack height 75,9 mm, NG10 x&y. “02H” SANDWICH BODY-T-16A CAVITY T->A AND T->B.
Sandwich housing without valve, cavity T-13A, stack height 31,5 mm, NG10 x&y. SANDWICH BODY D05 / ISO-05 C/W X + Y T-13A CAVITY A TO B.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. BODY- D02H SANDWICH. T-5A CAVITY ON “T” PORTS.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H SANDWICH BODY-DUAL ANTI-CAV WORK PORTS TO TANK.
Sandwich housing without valve, cavity T-5A, stack height 37,8 mm, NG10 x&y. BODY-D02H CETOP SANDWICH T-5A CAVITY ON A & B.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H CETOP SANDWICH T-5A CAVITY ON A & B.
Sandwich housing without valve, cavity T-16A, stack height 75,9 mm, NG10 x&y. BODY-02H SANDWICH T-16A CAVITY ON A & B.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. ISO 07 SANDWICH VALVE, METER OUT “A”.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. D04 SANDWICH VALVE, METER OUT “B”.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. ISO 07 SANDWICH VALVE, METER IN “A”.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. D04 SANDWICH VALVE, METER IN “B”.

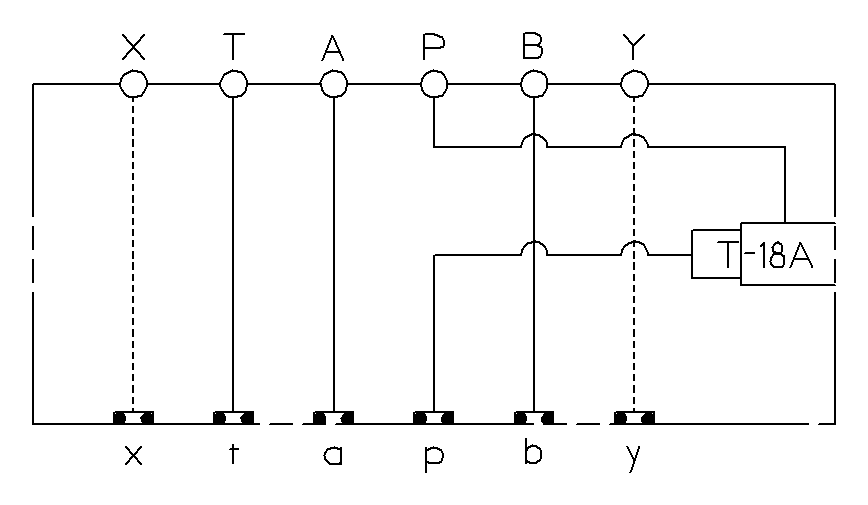

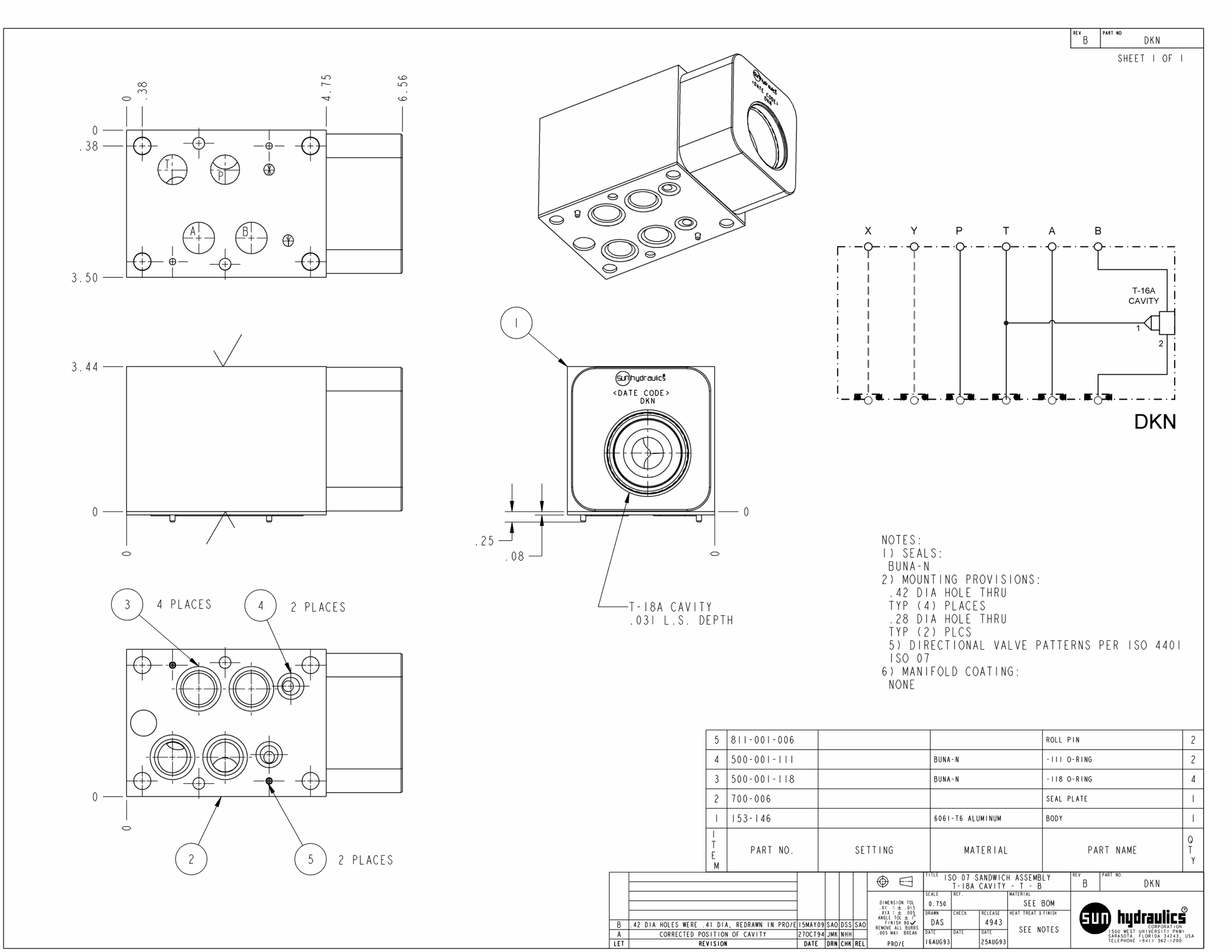

Sandwich housing without valve, cavity T-18A, stack height 69,6 mm, NG16.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. ISO 07 SANDWICH ASSEMBLY METER OUT B, T-18A CAVITY.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. NFPA D04 SANDWICH- METER IN-A. T-18A CAV.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. METER IN B, T-18A CAVITY ISO 07 SANDWICH ASSEMBLY.
Sandwich housing without valve, cavity T-16A, stack height 67,6 mm, NG16. ISO 07 SANDWICH-T-16A CAVITY “A” TO “P”.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. ISO 07 SANDWICH BODY- T-18A CAVITY T->A.
Sandwich housing without valve, cavity T-18A, stack height 88,7 mm, NG16. ISO 07 SANDWICH ASSEMBLY T-18A CAVITY – T – B.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. ISO 07 SANDWICH- METER IN-P. T-18A CAV.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. ISO 07 SANDWICH VALVE, CHECK ON “P” PORT.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. ISO 07 SANDWICH ASSEMBLY T-18A CAVITIES T-A & T-B.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. D07 SANDWICH VALVE. CHECK ON “T” PORT.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. NFPA D04 SANDWICH- METER IN-A&B (T-18A CAV).
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. ISO 07 SANDWICH METER OUT-T. T-18A CAV.
Sandwich housing without valve, cavity T-18A, stack height 89,4 mm, NG16. D07 SANDWICH- METER OUT-A&B (T-18A CAV).
Sandwich housing without valve, cavity T-5A, stack height 49,8 mm, NG16.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. D07 SANDWICH VALVE METER OUT A & B.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. D07 SANDWICH METER IN “A” & “B”.

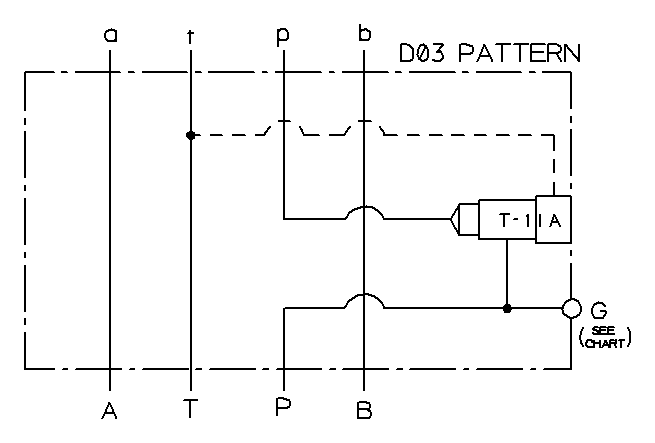

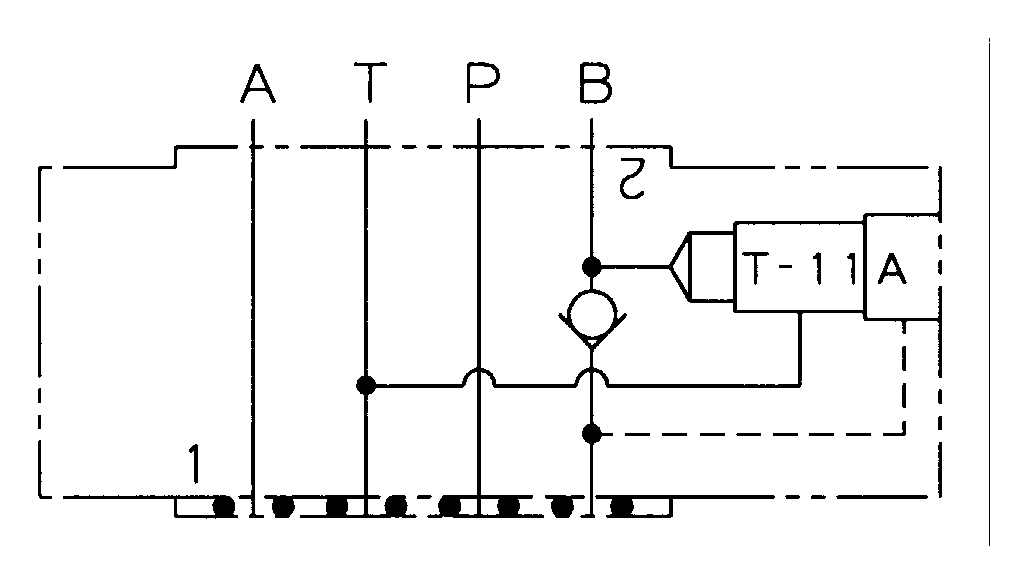

Sandwich housing without valve, cavity T-11A, stack height 63,2 mm, NG6. ISO 03 SANDWICH- DUAL CUSHION LOCK VALVE.
Sandwich housing without valve, cavity T-11A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-T-11A CAV. ON A OR B PORT-P.O. CHECK, REDUCER, C’BALANCE.
Sandwich housing without valve, cavity T-11A, stack height 44,5 mm, NG6. ISO-03 SANDWICH- T-11A CAVITY ON “A” OR “B” WITH DRAIN TO “T” OR “P”.
Sandwich housing without valve, cavity T-11A, stack height 44,5 mm, NG6. BODY- ISO 03 CROSS-PILOTED T-11A CAVITIES ON A & B.
Sandwich housing without valve, cavity T-11A, stack height 50,8 mm, NG6. 5 GPM NFPA SUBPLATE FOR “P” PORT REDUCING VALVES BOTTOM PORTED.
Sandwich housing without valve, cavity T-11A, stack height 50,8 mm, NG6. 5 GPM NFPA SUBPLATE FOR “P” PORT REDUCING VALVES SIDE PORTED.
Sandwich housing without valve, cavity T-11A, stack height 50,8 mm, NG6. 5GPM NFPA SUBPLATE FOR “P” PORT REDUCING VALVES SIDE PORTED-MANIFOLD “T” PORT.

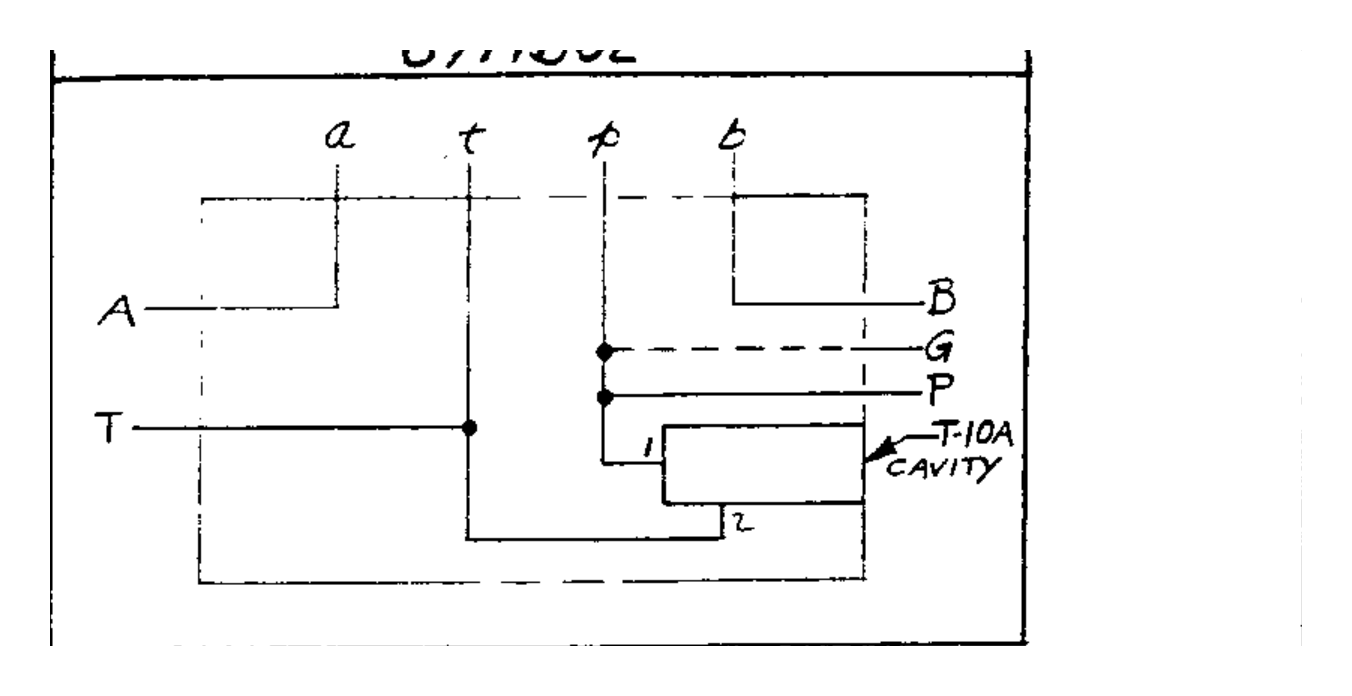

Sandwich housing without valve, cavity T-10A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-“A” OR “B” W/REVERSE FF CHECK.
Sandwich housing without valve, cavity T-10A, stack height 50,8 mm, NG6. 5 GPM NFPA SUBPLATE FOR RELIEF VALVE “P” TO “T” BOTTOM PORTED.
Sandwich housing without valve, cavity T-10A, stack height 53,8 mm, NG10. 10 GPM NFPA SUBPLATE FOR RELIEF VALVE- P TO T BOTTOM PORTED.
Sandwich housing without valve, cavity T-10A, stack height 50,8 mm, NG6. 5GPM NFPA SUBPLATE FOR RELIEF VALVE – “P TO T” SIDE PORTED.
Sandwich housing without valve, cavity T-10A, stack height 49,3 mm, NG10. 10GPM NFPA SUBPLATE FOR RELIEF VALVE-“P” TO “T” SIDE PORTED.
Sandwich housing without valve, cavity T-10A, stack height 49,3 mm, NG10. 10GPM NFPA SUBPLATE FOR RELIEF VALVE-“P” TO “T” SIDE PORTED.
Sandwich housing without valve, cavity T-10A, stack height 50,8 mm, NG6. ISO 03 SUBPLATE FOR RELIEF VALVE-“P” TO “T” SIDE-PORTED, MANIFOLD “T” PORT.
Sandwich housing without valve, cavity T-10A, stack height 49,3 mm, NG10.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-A OR B PORT FLOW CONTROL 5 GPM.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. “A” OR “B” PORT FLOW CONTROL ISO 03 SANDWICH.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. BODY- 5GPM NFPA SANDWICH A OR B PORT BLEEDOFF.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-T-5A CAVITY METER IN OR OUT A OR B.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. D03 SANDWICH BODY-T5A CAV. BLEEDOFF A->T OR B->T.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH BODY-DUAL BLEEDOFF.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-T-5A CAV. METER IN P OR METER OUT T.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-P OR T PORT CHECK, NEEDLE, OR P.C.F.C.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH- BLEED OFF FLOW CONTROL.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-P OR T PORT CHECK, NEEDLE, OR P.C.F.C.
Sandwich housing without valve, cavity T-13A, stack height 31,5 mm, NG6. BODY-“A”TO”B”TO”A” 5GPM ISO-3 SANDWICH T-13A CAVITY.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. BODY- BLEED OFF A OR B TO P OR T.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. BODY- ANTICAVITATION OR BLEEDOFF 5 GPM D01 NFPA SANDWICH.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH- A & B PORT FLOW CONTROL 5 GPM.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-DUAL T-5A CAVITIES-METER IN OR OUT A & B.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-A OR B PORT FLOW CONTROL 5 GPM.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH BODY-T-5A CAVITY T->A OR T->B.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH BODY-T-5A CAVITY T->A AND T->B.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-T-5A CAV. CHECK ON P OR T.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH- P OR T PORT CHECK.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH- T TO P CHECK. T-13A CAVITY.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH- 5 GPM, A OR B PORT BLEEDOFF.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH- A & B PORT FLOW CONTROL 5 GPM.
Sandwich housing without valve, cavity T-5A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-DUAL T-5A CAVITIES-CHECK ON A & B.
Sandwich housing without valve, cavity T-19A, stack height 87,4 mm, NG25. BODY: ISO 08, P.O. CHECK ON “A” PORT.
Sandwich housing without valve, cavity T-19A, stack height 87,4 mm, NG25. BODY: D06, P.O. CHECK ON “B” PORT.
Sandwich housing without valve, cavity T-17A, stack height 87,4 mm, NG25. ISO 08 T-17A CAVITY ON “A”.
Sandwich housing without valve, cavity T-17A, stack height 87,4 mm, NG25. ISO 08 ON “B” T-17A CAVITIES.
Sandwich housing without valve, cavity T-17A, stack height 87,4 mm, NG25. ISO 08 DUAL CROSS- PORTED T-17A CAVITIES.
Sandwich housing without valve, cavity T-19A, stack height 87,4 mm, NG25. BODY: D06, DUAL P.O. CHECK.
Sandwich housing without valve, cavity T-19A, stack height 150,9 mm, NG25. ISO 08 SANDWICH- CUSHION LOCK VALVE.
Sandwich housing without valve, cavity T-17A, stack height 87,4 mm, NG25. BODY-REAR PORT D06 REDUCING SUBPLATE.
Sandwich housing without valve, cavity T-17A, stack height 87,4 mm, NG25. BODY-SIDE PORT-D06-REDUCING SUBPLATE.
Sandwich housing without valve, cavity T-17A, stack height 87,4 mm, NG25. BODY-GASKET MT’D. D06-REDUCING SUBPLATE.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY: D06, METER OUT A.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY: D06, METER OUT “B”.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY: D06, METER IN A.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY: D06, METER IN “B”.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. BODY-D06, METER OUT-A.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. BODY- D06, METER OUT-B.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. BODY-D06, METER IN-A.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. ISO-08 PATTERN METER IN B.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. ISO 08 SANDWICH BODY- T-18A CAVITY T->A.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. ISO 08 SANDWICH BODY- T-18A CAVITY T->B.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. BODY-ISO 08, METER IN-P.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY – “P” PORT – CHECK T-16A CAVITY.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. ISO 08 SANDWICH BODY- T-18A CAVITY T->A & T->B.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY-D06 SANDWICH “T” PORT CHECK T-16A CAVITY.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. BODY-D06 SANDWICH “T” PORT FUNCTION T-18A CAVITY.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. BODY: D06, METER OUT A&B.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. ISO 08 SANDWICH BODY- METER IN A & B.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. BODY: D06, METER OUT A&B.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG25. BODY: D06, METER IN A&B.
Sandwich housing without valve, cavity T-163A, stack height 30,0 mm, NG6. ISO 03 SANDWICH BODY 30mm HIGH T-163A On A Piloted from B.
Sandwich housing without valve, cavity T-163A, stack height 30,0 mm, NG6. ISO 03 SANDWICH BODY 30mm HIGH T-163A On A & B Cross Piloted.
Sandwich housing without valve, cavity T-21A, stack height 44,5 mm, NG6. BODY-ISO 03 SANDWICH SINGLE T-21A ON A. PILOT ON B. VENT TO TANK.
Sandwich housing without valve, cavity T-21A, stack height 44,5 mm, NG6. BODY-ISO 03 SANDWICH SINGLE T-21A ON B PILOT FROM A. VENT TO TANK.
Sandwich housing without valve, cavity T-21A, stack height 44,5 mm, NG6. BODY-ISO 03 SANDWICH DUAL CROSS-PILOTED T-21A VENT TO TANK.
Sandwich housing without valve, cavity T-22A, stack height 63,2 mm, NG10. ISO 05 SANDWICH, T-22A ON A PORT PILOT FROM B VENT TO TANK.
Sandwich housing without valve, cavity T-22A, stack height 63,2 mm, NG10. ISO 05 SANDWICH, T-22A ON B PORT PILOT FROM A VENT TO TANK.
Sandwich housing without valve, cavity T-22A, stack height 63,2 mm, NG10. ISO-05 SANDWICH, T-22A ON B PORT, PILOT FROM A EXTERNAL VENT.
Sandwich housing without valve, cavity T-22A, stack height 63,2 mm, NG10. ISO 05 SANDWICH, DUAL CROSS-PILOTED T-22A VENT TO TANK.
Sandwich housing without valve, cavity T-22A, stack height 63,2 mm, NG10 x&y. “02H” SANDWICH, T-22A CAVITY ON “A” PILOTED FROM “B”. VENT TO TANK.
Sandwich housing without valve, cavity T-22A, stack height 63,2 mm, NG10 x&y. “02H” SANDWICH, T-22A CAVITY ON “B” PILOTED FROM “A”. VENT TO TANK.
Sandwich housing without valve, cavity T-22A, stack height 63,2 mm, NG10 x&y. “02H” SANDWICH, DUAL CROSS-PILOTED T-22A VENT TO TANK.
Sandwich housing without valve, cavity T-23A, stack height 89,4 mm, NG16. ISO 07 SANDWICH- T-23A CAVITY ON “A” PILOT FROM “B” DRAIN TO TANK.
Sandwich housing without valve, cavity T-23A, stack height 89,7 mm, NG16. ISO 07 SANDWICH- T-23A CAVITY ON “B” PILOT FROM “A” DRAIN TO TANK.
Sandwich housing without valve, cavity T-23A, stack height 89,4 mm, NG16. ISO 07 SANDWICH – LOAD CONTROL ON “A”, PILOT FROM “B”, EXTERNAL DRAIN.
Sandwich housing without valve, cavity T-23A, stack height 89,4 mm, NG16. ISO 07 SANDWICH T-23A CAVITY ON “B” PILOT FROM “A” DRAIN TO TANK EXTERNAL.
Sandwich housing without valve, cavity T-23A, stack height 89,4 mm, NG16. ISO 07 SANDWICH- DUAL CROSS-PILOTED T-23A CAVITIES EXTERNAL VENT.
Sandwich housing without valve, cavity T-23A, stack height 89,4 mm, NG16. ISO 07 SANDWICH DUAL CROSS PILOTED T-23A CAVITIES DRAIN TO TANK.
Sandwich housing without valve, cavity T-23A, stack height 87,4 mm, NG25. ISO 08 T-23A CAVITY ON “A”.
Sandwich housing without valve, cavity T-23A, stack height 87,4 mm, NG25. ISO 08 ON “B” T-23A CAVITY.
Sandwich housing without valve, cavity T-23A, stack height 87,4 mm, NG25. ISO 08 DUAL CROSS- PORTED T-23A CAVITIES.
Sandwich housing without valve, cavity T-24A, stack height 125,5 mm, NG25. ISO 08 T-24A CAVITY ON “A”.
Sandwich housing without valve, cavity T-24A, stack height 125,5 mm, NG25. ISO 08 T-24A CAVITY ON “B”.
Sandwich housing without valve, cavity T-24A, stack height 125,5 mm, NG25. ISO 08 DUAL CROSS- PORTED T-24A CAVITIES.
Sandwich housing without valve, cavity T-5A, stack height 50,0 mm, NG6. ISO-03 50MM METER OUT ON A AND B ASSEMBLY.
Sandwich housing without valve, cavity T-11A, stack height 50,0 mm, NG10. 50 mm ISO 05 SANDWICH DUAL T-11A ON A + B CROSS PILOTED.
Sandwich housing without valve, cavity T-13A, stack height 50,0 mm, NG10.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10. ISO 05 SANDWICH BODY- B TO P FULL-TIME REGEN.
Sandwich housing without valve, cavity T-5A, stack height 63,2 mm, NG10 x&y. 02H SANDWICH BODY- B TO P FULL-TIME REGEN.
Sandwich housing without valve, cavity T-3A, stack height 49,3 mm, NG16. BODY-ISO 07 SUBPLATE, T-3A FROM P TO T, SIDE PORTED W/ GASKETED “T” AND “Y” PORTS.
Sandwich housing without valve, cavity T-11A, stack height 40,0 mm, NG6. ISO-03 SANDWICH BODY 40mm HIGH T-11A ON A, PILOT FROM B.
Sandwich housing without valve, cavity T-2A, stack height 50,0 mm, NG10. BODY – ISO-05 SANDWICH DUAL T-2A CAVITIES A + B CROSS PILOTED. 50mm HEIGHT.
Sandwich housing without valve, cavity T-5A, stack height 50,0 mm, NG10. ISO 05 SANDWICH BODY 50mm HIGH T-5A CAVITY – METER IN ON P.
Sandwich housing without valve, cavity T-5A, stack height 50,0 mm, NG10. ISO 05 SANDWICH BODY 50mm HIGH T-5A CAVITY – METER OUT OF T.
Sandwich housing without valve, cavity T-16A, stack height 87,4 mm, NG25. ISO 08 SUBPLATE-“P” TO “T” SERIES 3 RELIEF.
Sandwich housing without valve, cavity T-11A, stack height 44,5 mm, NG6. ISO 03 SANDWICH-T-11A CAVITY ON “P”, w/BYPASS TO TANK.
Sandwich housing without valve, cavity T-11A, stack height 62,0 mm, NG6. ISO 03 SANDWICH-T-11A CAV. ON PORT “A” OR “B”, PORT #2 EXTERNAL.
Sandwich housing without valve, cavity T-2A, stack height 63,2 mm, NG10 x&y. PRIORITY FLOW CONTROL BODY ON A W/REVERSE FF 02H SANDWICH.
Sandwich housing without valve, cavity T-2A, stack height 63,2 mm, NG10 x&y. PRIORITY FLOW CONTROL BODY ON B W REVERSE FF 02H SANDWICH.
Sandwich housing without valve, cavity T-162A, stack height 38,1 mm, NG6. ISO 03 P-PORT RELIEF SUBPLATE w/T-162A CAVITY.
Sandwich housing without valve, cavity T-19A, stack height 100,0 mm, NG25. ISO 08 SANDWICH-PRIORITY FLOW CONTROL ON “A” w/ REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-19A, stack height 100,0 mm, NG25. ISO 08 SANDWICH-PRIORITY FLOW CONTROL ON “B” w/ REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-11A, stack height 63,2 mm, NG6. ISO 03 SANDWICH-PRIORITY FLOW CONTROL ON “A” w/REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-11A, stack height 63,2 mm, NG6. ISO 03 SANDWICH-PRIORITY FLOW CONTROL ON “B” w/REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-2A, stack height 62,0 mm, NG10. ISO 05 SANDWICH-PRIORITY FLOW CONTROL ON “A” w/REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-2A, stack height 62,0 mm, NG10. ISO 05 SANDWICH-PRIORITY FLOW CONTROL ON “B” w/REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-17A, stack height 89,4 mm, NG16. ISO 07 SANDWICH-PRIORITY FLOW CONTROL ON “A” w/REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-17A, stack height 89,4 mm, NG16. ISO 07 SANDWICH-PRIORITY FLOW CONTROL ON “B” w/REVERSE FREE-FLOW CHECK.
Sandwich housing without valve, cavity T-16A, stack height 62,0 mm, NG10 x&y. ISO 05 SANDWICH BODY WITH “X” AND “Y” PORTS, FILTER ON “P”.
Sandwich housing without valve, cavity T-18A, stack height 93,8 mm, NG25. ISO 08 SANDWICH BODY- FILTER ON “P”.
Sandwich housing without valve, cavity T-13A, stack height 44,5 mm, NG6. ISO 03 SANDWICH BODY FILTER ON “P” OR “T”.
Sandwich housing without valve, cavity T-5A, stack height 62,0 mm, NG10. ISO 05 SANDWICH BODY FILTER ON “P”.
Sandwich housing without valve, cavity T-16A, stack height 69,6 mm, NG16. ISO 07 SANDWICH BODY FILTER ON “P”.
Sandwich housing without valve, cavity T-11A, stack height 40,0 mm, NG6. ISO 03 SANDWICH-DUAL CROSS-PILOTED T-11A CAVITIES, 40mm HEIGHT.
Sandwich housing without valve, cavity T-13A, stack height 40,0 mm, NG6. ISO 03 SANDWICH-T-13A CAV. P-CONTROL, 40mm HEIGHT.
Sandwich housing without valve, cavity T-18A, stack height 87,4 mm, NG6. FILTER CARTRIDGE MANIFOLD-T-18A CAVITY.
Sandwich housing without valve, cavity T-31A, stack height 44,5 mm, NG6. ISO 03 SANDWICH T-31A CAVITY.
Sandwich housing without valve, cavity T-10A, stack height 62,0 mm, NG10 x&y. ISO-05H CETOP SUBPLATE T-10A CAVITY P TO T.
Sandwich housing without valve, cavity T-3A, stack height 49,3 mm, NG16. D04 SUBPLATE- RELIEF P-TO-T, SIDE PORTED.
Sandwich housing without valve, cavity T-11A, stack height 50,5 mm, NG10. ISO 05 SANDWICH, T-11A CAVITY “A” OR “B” TO “T” w/EXTERNAL “T” PORT.
